Products > Assembling Tools & Accessories > Magnetic Assemblies > Rubber Coated Magnet

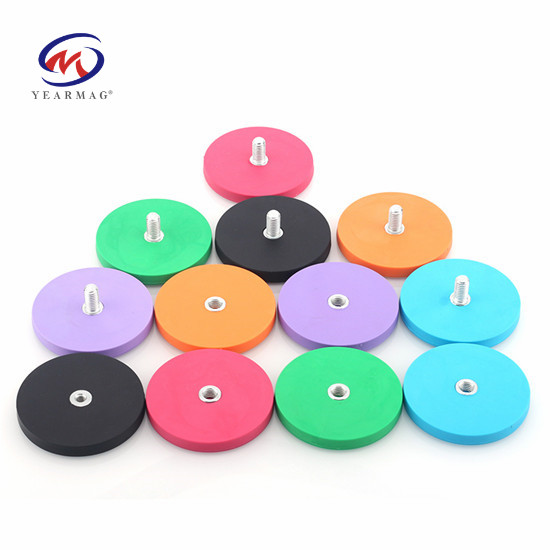

Product name : Rubber Coated Magnet

Product No. : 20211023222255

Material : NdFeB Magnet+Rubber Coating

Size : D22/31/36/43/55/66/88/135mm

Color : Black, Colorful

Feature : Permanent Magnet

Working Model : Attraction

Working Temperature : ≤80°c

Style : Screw, Protruding/ Flat Internal Thread

Brand : YEARMAG

Application : Mounting Base, Fixing Holder, Weight Lifter, etc.

←[Previous Product]

Online Inquiry Email Us

Details:

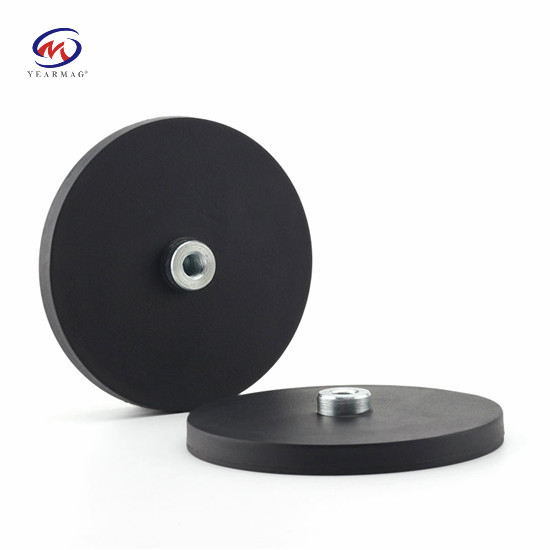

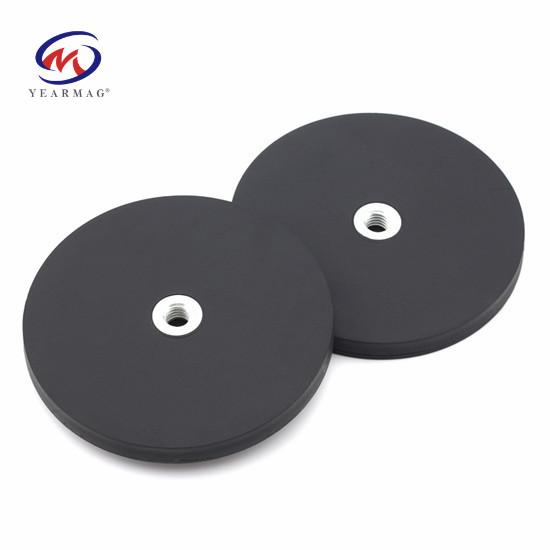

1. Rubber coated magnet with flat internal thread

Model	D (mm)	H (mm)	M	Vertical Pull Force (kg)
YMAG04-C22	22	7	M3-M6, 1/4-20	3.5
YMAG04-C28	28	8.5	M3-M6, 1/4-20	7.5
YMAG04-C31	31	7	M3-M6, 1/4-20	7.5
YMAG04-C36	36	7	M3-M6, 1/4-20	7.5
YMAG04-C43	43	6	M3-M6, 1/4-20	8.5
YMAG04-C55	55	8.5	M4-M10, 1/4-20	18
YMAG04-C66	66	8.5	M4-M10, 1/4-20	20
YMAG04-C88	88	8.5	M5-M10, 1/4-20, 3/8-16	42
YMAG04-C135	135	8.5	M5-M10, 1/4-20, 3/8-16	55

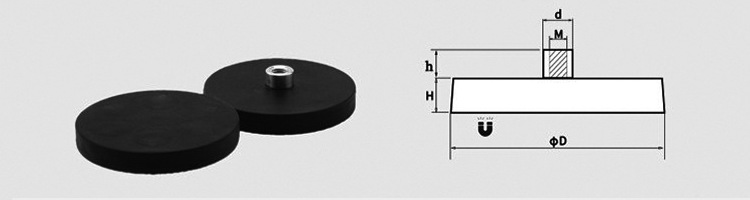

2. Rubber coated magnet with protruding thread

Model	D (mm)	H (mm)	d (mm)	h (mm)	M	Vertical Pull Force (kg)
YMAG04-D22	22	7	8	5.5	M3-M6, 1/4-20	3.5
YMAG04-D28	28	8.5	8	4.5	M3-M6, 1/4-20	7.5
YMAG04-D31	31	7	8	5.5	M3-M6, 1/4-20	7.5
YMAG04-D36	36	7	8	4.5	M3-M6, 1/4-20	7.5
YMAG04-D43	43	6	8	4.5	M3-M6, 1/4-20	8.5
YMAG04-D55	55	8.5	12	5.5	M4-M10, 1/4-20	18
YMAG04-D66	66	8.5	12	5.5	M4-M10, 1/4-20	20
YMAG04-D88	88	8.5	15	5.5	M5-M12, 1/4-20, 3/8-16	42
YMAG04-D135	135	8.5	15	5.5	M5-M12, 1/4-20, 3/8-16	55

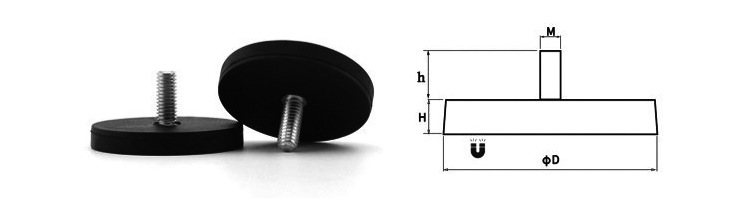

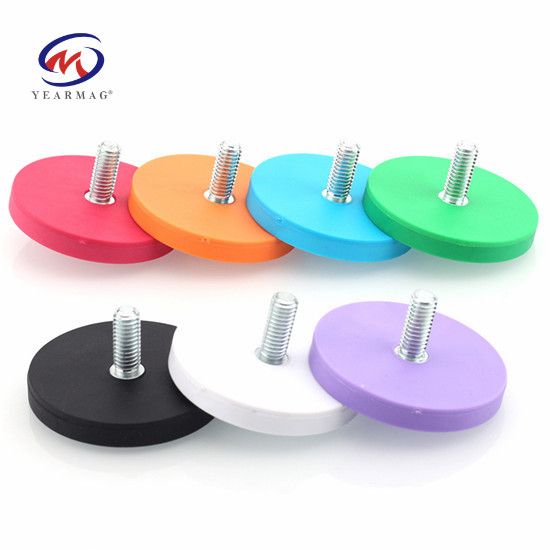

3. Rubber coated magnet with external thread

Model	D (mm)	h (mm)	H (mm)	M	Vertical Pull Force (kg)
YMAG04-E22	22	7	12	M3-M6, 1/4-20	3.5
YMAG04-E28	28	8.5	23.5	M3-M6, 1/4-20	7.5
YMAG04-E31	31	7	21	M3-M6, 1/4-20	7.5
YMAG04-E36	36	7	22	M3-M6, 1/4-20	7.5
YMAG04-E43	43	6	21	M3-M6, 1/4-20	8.5
YMAG04-E55	55	8.5	23.5	M4-M10, 1/4-20	18
YMAG04-E66	66	8.5	23.5	M4-M10, 1/4-20	20
YMAG04-E88	88	8.5	23.5	M5-M12, 1/4-20, 3/8-16	42
YMAG04-E135	135	8.5	23.5	M5-M12, 1/4-20, 3/8-16	55
